Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

Ben sohbet şimdi

Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control

Çin Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control Tedarikçi
Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control Tedarikçi Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control Tedarikçi

Büyük resim :  Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control

Ürün ayrıntıları:

Place of Origin: China
Marka adı: WONSUN
Sertifika: CE/SGS/ISO
Model Number: DZ-138

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1ADET
Fiyat: negotiated
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Teslim süresi: ödemenizi aldıktan sonra 3-7 iş günü
Ödeme koşulları: T / T, Western Union, Para Gram, Alibaba Ticaret Güvencesi, Paypal vb,
Yetenek temini: 1000 setleri/ay
Contact Now
Detaylı ürün tanımı
Product Name: Wind Power DC12V Traffic Serve Motor Barrier Gate With Encoder Control Color: Orange,yellow,green,gray,optional
Material: 2mm cold-roll steel sheet Speed Time: 0.3s/0.6s/0.9s/2s/4s
Power Supply: AC90V`AC264V,50/60HZ MTBF: >5 million times
Net Gross: 42.6KG Keywords: Serve Motor Barrier Gate

Wind Power DC12V Traffic Serve Motor Barrier Gate With Encoder Control

Contact Us For Catalogue And Pricilist
Miss.Joy
E-mail:sales@wonsunbarrier.com
Whatsapp:0086 18825267259
Skype:Joy0628

Product Specifications


Arm LengthMax6M
Opening And Closing Time0.3S,0.6S,0.9S,3S,4S
Rated VoltageAC100V~AC264V,DC24V
Frequency50Hz~60Hz
Motor Rated Power50W,Max 100W
Working Environment-40 ℃ ~85 ℃
PowerStandby≤8W,run≤100W
Housing Size(H*W*H*W)342*312*959*2mm
LifetimeMore than 10 million operation time or 10 years
MTTR<0.5Hrs
MTBF>500 million operation times
Protection DegreeIP65
Relative Humidity≦ 90%
Motorno-load speed3000r/min
Remote Distance≦ 100m
Output Torque0.86N.M*140=120N.M
Running Noise:<60dB
Net Weight42.6KG

Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control


Our Advantages

*Excellent waterproof, dust-proof performance, the whole product protection grade is IP65.

* Excellent weather resistance, -40 ℃ ~ 85 ℃ reliable work, military quality.

* Can work with DC24V battery, can be combined with solar energy, wind power, suitable places lack of AC power.

* Open and close speed is fast, overall increase the vehicle passing rate, shorten the vehicle traffic interval.

* Boom rise automatically when power off, comply with the fire safety requirements.

* Boom detail to anti-collision.

* Long time maintenance-free, greatly reducing maintenance costs.

* The highest level of security, completely avoid smashing cars or smashing people.

* During the course of the movement without any mechanical impact or shock absorption, the highest reliability, the longest service life.

* Boom rising angel adjustable (60°, 70°,80°,90°)

* Direction exchange is easy.

* Free debugging during production and installation, greatly reduce the maintenance and labor costs.

* Advanced servo control system, high speed and precise.

* Low-power servo motor, truly maintenance-free, high durability and energy saving.

* Zero speed (0 rpm) constant torque output, no need worry about external force to lever the boom.

* No position sensor, each stop with the same accuracy. Pair using is fully synchronized.

* No anti-shock rubber, no impact, no bounce, free adjustment.

* No clutch device, boom will auto rise when power off (or unlock when power off, only use hand to lift the boom gently).

* No key-way design, no longer to worry about the gap between the key-way and the key, which is a hidden danger.

* No brake design, no longer to worry about the troubles from the wear of the brake pads and a series of reliability problems.

* Highly reliable industrial-grade sports parts, completely beyond the industry quality.

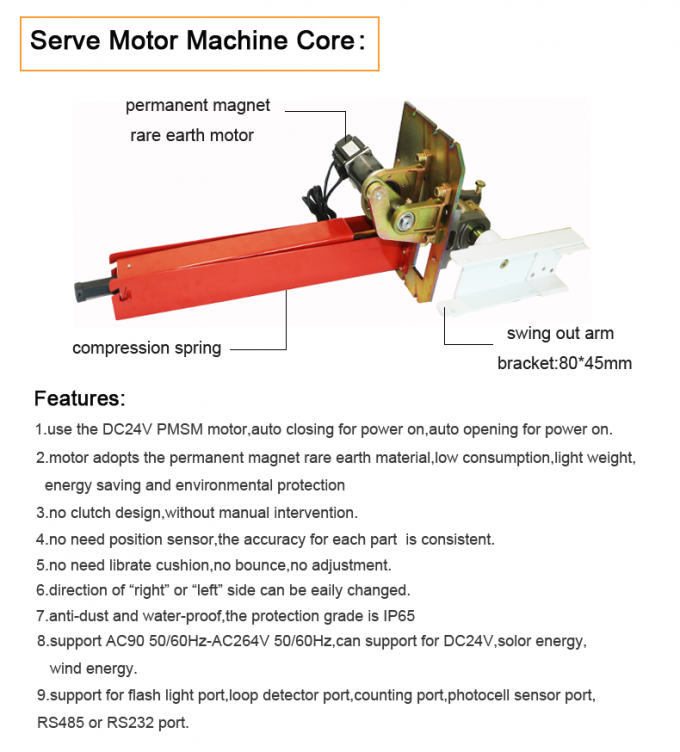

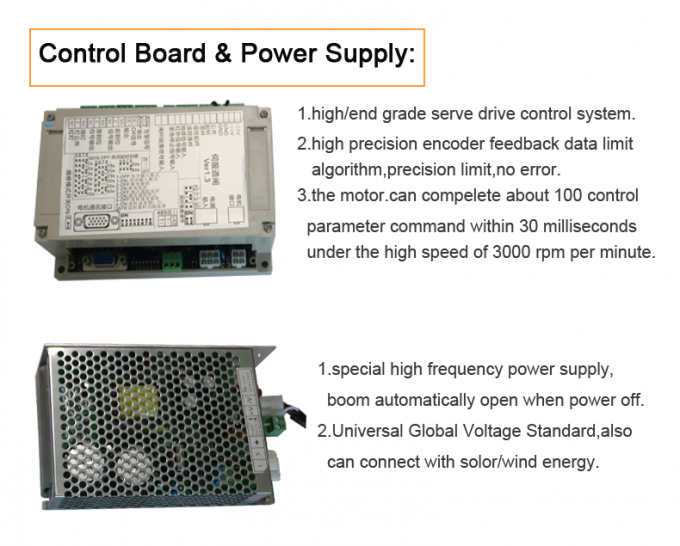

Machine Core&Control Board Functions


Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control
Wind Power DC12V Serve Motor Road Barrier Gate With Encoder Control

RFQ:

Q: What's the order process?

A: Follow the steps on below to complete your order.
- 1. Inquiry
Provide us detailed information about your requirement, and we'll recommend the suitable products according to your request
-2. Quotation
Official quotation form with all clear specifications according to the order
-3. Invoice
Invoice will be issued once the quotation is confirmed.
-4. Payment
Payment shall be issued once the invoice issued. Full payment is acquired.
-5. Production
Bulk production shall be taking 15-25 working days.
-6. Delivery
by sea, air or courier. Detailed picture of package will be provided upon the service you've chosen. Packaging info will be sent upon confirmation.


Why choose us?

1. OEM Brand, Logo, Label available
2 2 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
