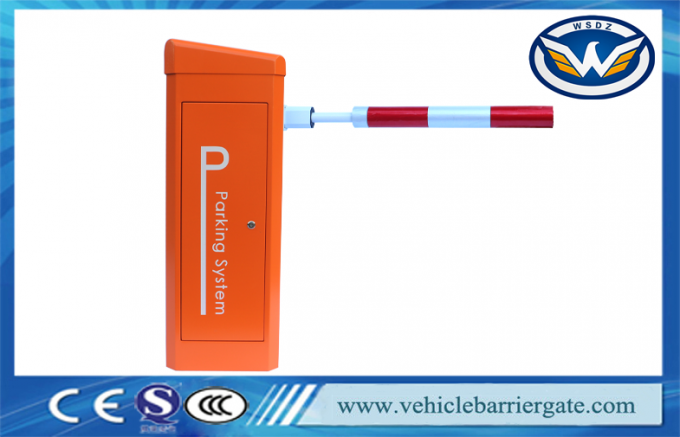

Serve Motor Intelligent Barrier , Electric Highway Barrier Gate System With 3 Fence
Simply Description For Serve Motor Barrier Gate:
Wonusn patented 138 series serve motor barrier gate,combining permanent-magnet synchrounous serve motor(PMSM motor) with high quality aluminum alloy press forming housing & well-designed gear reducer,the motor features high power density,low noise,small vibration,high efficiency and fast response as special drive applied.Compared with traditional asynchronous motor,the serve motor has such advantages as higher efficiency,higher power factor,lighter,low temprerature rise,better power-saving,by which it improves power grid quality factor,and brings current power grid capacity into full play,thus save investment on power grid.The motor drive employees serve motion control algorithm to accurately position open/colse position and motion curve track through encoder,able to be widely use for expressway toll station,bus station,shopping mail,airport,hospital.,etc
|Model||DZ-138 intelligent barrier|
|opening and closing time:||≤ 0.6s, 0.9s, 2s, 4s|
|Rated voltage:||AC100V ~ AC264V, DC24V|
|Frequency:||50Hz ~ 60Hz|
|Motor rated power:||50W, the maximum power of 100W|
|Working environment temperature:||-40 ℃ ~ 75 ℃|
|Power:||standby ≤ 8W, run ≤ 100W|
|Dimensions (W * D * H):||342 * 312 * 959mm|
|Lifetime:||more than 10 million or 10 years|
|MTBF:||> 5 million times|
|Relative humidity:||≤ 90%|
|Motor no-load speed:||3000 r / min|
|Remote control distance:||≤ 100 meters|
|Longest ARM length:||6 meters|
|Output torque:||0.86N.M * 140 = 120N.M.|
|running noise:||< 50dB|
|Machine core N.W||22.1kg|
|Surface treatment||Outdoor metal powder, electrostatic spraying|
1.When Power off, gate automatically open, no clutch design, no human intervention. When power on,
gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If
special requirement, manual operation is required when power off . Operating arm open and close by
hand also can be realized by setting up control board DIP switch, which ensure that the system can be
used at any time.
2. The use of Single Balance Spring device, good regulation, no noise, indefatigable, not easy to break,
safe and reliable.
3. A variety of input and output modes can be selected, normally open normally closed optional.
4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves
prominent place to install.
5. Closing speed can be adjusted, 0.9S, 1.3S.
6. Barrier gate up&down signal relay switch output.
7. Barrier gate running state: OK signal output indicating that the gate is working properly.
8. Barrier gate operation abnormal alarm signal output.
9. Traffic light relay switch signal output.
10. External loop detector signal anti-smashing interface, infrared sensor signals anti-smashing interface.
11. Count mode interface.
12. Arm Open priority anti-smashing function, regardless of the current gate in what state, the operator
through the triple push button, software or remote control to issue a gate arm up, the gate will give priority
to the implementation of the opening action.
13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing
out to avoid damage to the vehicle and barrier gate machine.
14. Delay down selection function.
15. high sensitivity arm auto reverse function (intensity can be adjusted)
16. Parking system interface
17.RS485 or RS232 network communication control up&down interface (no need to install communication
18. Anti-collision alarm signal interface.
19. Arm direction change is simple.
20. Adjustable speed port (S curve adjustment)
