Ürün ayrıntıları:
|
| Konut malzeme: | 2mm soğuk silindir çelik levha | Konut renk: | Bule, Turuncu, Beyaz, Sarı |
|---|---|---|---|
| Konut boyutu: | 335 * 335 * 935 mm | Güç kaynağı: | AC 220V / 110V |
| Hızlandırın: | 1s, 1.8s, 3S, 6S | Kol malzeme: | Alüminyum alaşım |
| Vurgulamak: | Otopark Yönetim Sistemi,güvenlik bariyerleri ve gates |
||
5 Million Operating Times Vehicle Security Barriers And Gates Aluminum alloy
Quick Details

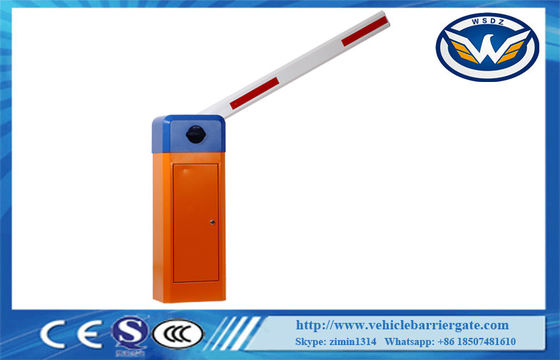

Vehicle Barrier Gate
Torque motor,steady,low noise,free maintenance
100% duty cycle,heavy duty
Automatic fault-detect
5 million MTBF
1 - 6 meters arm
Model Selection and Differences
| Model | Boom Shape | Max Boom Length | Speed |
| WST-121 | Straight boom | 4.5m | 6 seconds |
| WST-1211 | Straight boom | 4m | 3 seconds |
| WST-1212 | 90 degree, Articulated boom | 4m | 6 seconds |
| WST-1213 | 90 degree, Articulated boom | 3m | 3 seconds |
| WST-1214 | 180 degree, Articulated boom | 4m | 6 seconds |
| WST-1215 | 180 degree, Articulated boom | 3m | 3 seconds |
| WST-1216 | Two-level, fence boom | 3.5m | 6 seconds |
| WST-1217 | Three-level, fence boom | 3m | 6 seconds |
Vehicle Barrier Gate Kit
1 * motor
1 * boom (from 1m to 6m can customised)
1 * control panel
2 * remote controllers
Functions & Features
|
1. Special driving structure, no gears, non-belt driving,maintenance free, high stability, longer life. |
|
2. Special balancing structure design makes the barrier arm has the feature of slow-starting, fast-running, slow-stopping. |
| 3. It is running without arm-shaking. |
|
4. The brarrier arm is 90 degrees running which excluding the failure caused 360 degrees running.
|
| 5. Special low-speed aluminum housing motor integrated gearbox design, low noise, fast heat-dissipation. |
|
6. The driving mechanism has the desiging of intelligent overheating protection system, in frequent use, it can control the warming of the motor, makes the motor not burned easily.
|
|
7. The main engine adopts mechanical limit switch and photoelectric limit switch dual protection, to avoid the problems caused by using traditional magnetic switch which is easily interfered by the external environment.
|
|
8. Barrier gae tcan be chosen from 1m to 6m.
|
Specifications
| Power | 250W |
| Housing Size | 344*290*1090 mm |
| Housing color | orange / gray / blue |
| Rail type | Fence |
| Rail material | Aluminum Alloy |
| Rail lifting time | 6S |
| Rail length | ≤4.5m |
| MCBF | ≥5, 000, 000 times |
| Motor speed | 30r/min |
| Wave pressure | N/A |
| Bumping bounce back | N/A |
| Traffic light | Optional |
| Working Temperature | -10°C to 45°C |
| Working environments | indoor, outdoor |
| Relative humidity | <90% coagulation free |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
| Market | Revenue(Previous Year) | Total Revenue (%) |
|---|---|---|
| North America | USD 63,608 | 1.0 |
| South America | USD 508,869 | 8.0 |
| Eastern Europe | USD 3,180,436 | 50.0 |
| Southeast Asia | USD 318,043 | 5.0 |
| Oceania | USD 127,217 | 2.0 |
| Mid East | USD 190,826 | 3.0 |
| Western Europe | USD 1,017,739 | 16.0 |
| Domestic Market | USD 954,130 | 15.0 |
