Ödeme & teslimat koşulları:
|Model Number:||WSTP-116B automated barrier gate||Housing material:||2mm cold roller steel plate|
|Housing dimension:||320 * 280 * 935 mm||Arm material:||Aluminum alloy|
|Maximum Remote Control Distance:||30m||Power Supply:||AC 220±10%,50/60HZ|

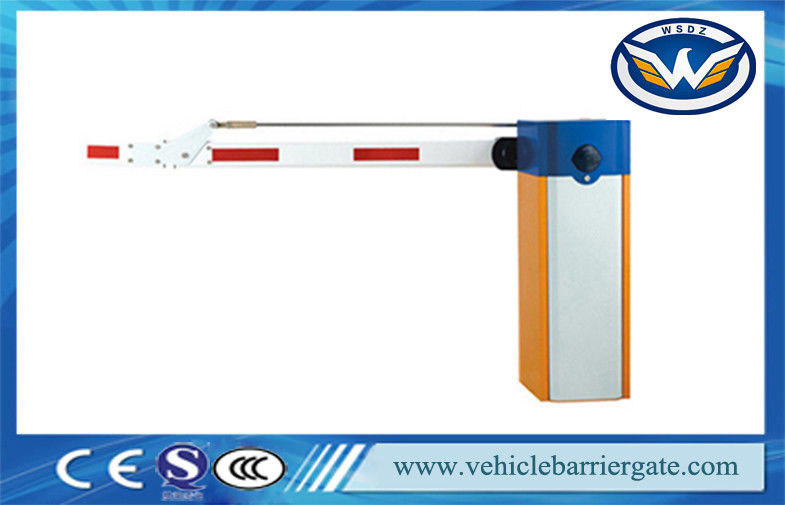

RS485 Communication Interface Automated Barrier Gate for Car Parking System
Wonsun parking lot barrier is designed using innovative technology and manufactured with precision
machinery to guaarantee satisfaction in quality and reliability for years to come.
Wonsun parking lot barrier has been lab tested for more than 5 millions opening / closing and still without any degrade in performance. No limit switch design minimizes mechanical wear and enchances barrier life time.
WSTP-116B series can use WONSUN 1st generation machine core
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
WSTP-115B gate barriers
|Operation time||0.6s, 1s, 1.8s, 3s, 6s. Customized|
|Arm Type||Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy
Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy
Galvanized plate or Cold roll plate, 2.5mm thickness sheet
3 years without rust, shedding and fading
|Spring And Bearing||Heat Treatment: more durable, more than 5 million times through operation testing|
|Rating Voltage||AC 220V/110V±10%, 50/60HZ|
|Remote Control Distance||Usually more than 30 meters, if there is less obstacles, even 50 meters or more|
|Packing Size||1020*375*467mm , with seven layers carton case
inside with air bubble film for protection
|Delivery||By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested
|Payment||Sample: full payment
Order: usually 40% advance deposite, balance before shipment
|Advantages||1. Professional Manfacturer for more 8 years
2. Mould Production, High Accuracy
3. Heat Treatment, more durable than normal
4. Better Service from Professional Work Team
Suitable for indoor as well as outdoor parking area at airport, shopping mall,
warehouse,hotel, factories, condominium, car rental companies, etc. It can
also be customized to beused together with any auto-pay ticketing parking
or access control system
Packaging & Shipping
1. Strong carton case with cushion for safety, air bubble film inside for protect ing the apperance from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and express, which according to your detail requirements.
Each barrier gate will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
|Machine core||Good in working||1||Main part|
|Barrier arm||Straight, folding or fence arm||1||Optional|
|Boom press board||1||Fixing the boom|
|Self-tapoing screw||ST4*16||Fixing the boom|
|Self-tapoing screw||st3*10||4||Fixing the boom|
|Supporting pole||1||Fupporting the boom|
|Expanion bolt||M16*150||4||Fixing the case|
|Hexagonal Inner Screw||M8*35||4||fixing the case|
|Clutch key||1||clutch device|
|Case Key||2||for case and cover locking|
|Balance spring||According to length of barrier arm||1||for sapre usage|
|Remote emitter||less than 30m is available||1||For remote control|
|Remote conrol handles||less than 30m is available||2||For remote control|
|Instruction||in English||1||For reference|
|Cover head||1||3 years without fading|
|Expanion nut||M8||4||Fixing the supporting pole|
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
6. What should we do if there have problems during using?
my dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or
call me!We will provide our best professional service for you.
7.How to import your machines?
* We will prepare gate barrier and shipment for you after payment;
*We will give you bill of loading after gate barrier depart our shipping port;
*Our shipping agent will contact you when gate barrier arrival
Service for free:
1. One year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
