Automatic Intelligent Manual Boom Barrier Gate For Railway Crossings
| Place of Origin | China |
|---|---|
| Marka adı | WONSUN |
| Sertifika | CE, ISO, SGS |
| Model Number | WSTP-115 |
| Min sipariş miktarı | 1ADET |
| Fiyat | negotiation |
| Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
| Teslim süresi | ödemenizi aldıktan sonra 3-7 iş günü |
| Ödeme koşulları | T / T, Western Union, Para Gram, Alibaba Ticaret Güvencesi, Paypal vb, |
| Yetenek temini | 1000 setleri/ay |
Contact me for free samples and coupons.
Naber:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xÜrün ayrıntıları
| Color | yellow, orange, blue, customized optional | Features | Heavy duty, manual release, swing out, remote control |
|---|---|---|---|
| Speed | 0.6s, 1s, 1.8s, 3s, 6s | Name | Automatic Intelligent Manual Boom Barrier Gate Easy Change Boom Direction Automatic Intelligent Manual Boom Barrier Gate Easy Change Boom Direction |
| Arm Type | Straight, Folding, Fencing | Boom Dirction | Right and Left optional |
| Vurgulamak | Bariyer Kapısı Boom,electric boom barrier |
||
Ürün Açıklaması

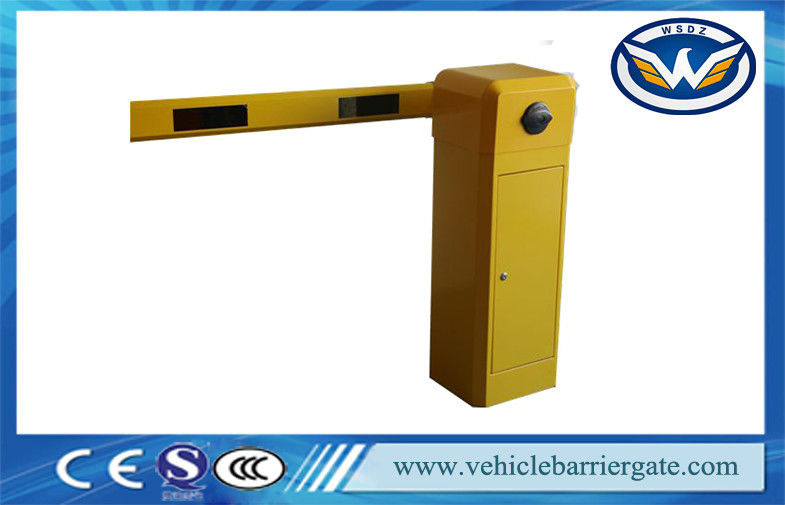

Automatic Intelligent Manual Boom Barrier Gate For Railway Crossings
Specifications:
| Model |
WSTP-115(WONSUN 1st generation machine core) |
| Power |
80w |
| Material |
Cold roll plate, Galvanized plate or stainless steel varnish baking, 3 years without fading |
| Running Time |
0.6s, 1s, 1.8s, 3s, 6s |
| Operating Temperature |
-45°C to 75°C |
| Voltage: |
220V ± 10%, 110V ± 10% |
| Relative Humidity |
<90% coagulation free |
| Motor speed |
30r/min |
| Boom length |
Max 6 meters |
| Net weight: |
50Kg |
| MCBF |
≥5, 000, 000 times |
| Housing Size |
320*280*935mm |
| Traffic light |
Optional |
| Rail material |
Aluminum Alloy |
| Boom Type |
Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
| Related accessories |
infrared sensors, loop detectors,traffic light, UHF readers |
| Application |
Parking Lots, Toll Gates, Goods Yards, Railway Crossings, |
| Advantages |
1. quick delivery time, 3-5 days for 50 sets after received advance deposite 2. 7 years OEM/ODM experience 3. quick response for handling problems |
| Our other products |
WONSUN has other products: tripod turnstiles, sliding gate motor, flap barrier,swing gate motor, pedestrian access control turnstiles and barriers, |
Functions & Features
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Packaging & Shipping:
1. Strong carton case with cushion for safety, air bubble film inside for protect ing the apperance from damaging.
2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.
3. As for shipping, we can send you the goods by air, sea and express, which according to your detail requirements.
Each barrier gate will include:
1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
Best Service:
1. OEM/ODM order are accepted, we have 7 years OEM/ODM experience
2. Price can be negotiable with order quantity.
3. 2 professional technicists can give you best support.
4. Mould production of accessories, can provide you any replace of barrier gate.
5. Professional sales team can provide you professional answers and quick response of your questions.
6. Sample order is OK for testing its function and working performance.
7. Warmly welcome for visiting our factory and having a face to face negotiation.
FAQ:
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
6. What should we do if there have problems during using?
My dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or
call me! We will provide our best professional service for you.
7.How to import your machines?
* We will prepare gate barrier and shipment for you after payment;
*We will give you bill of loading after gate barrier depart our shipping port;
*Our shipping agent will contact you when gate barrier arrival
