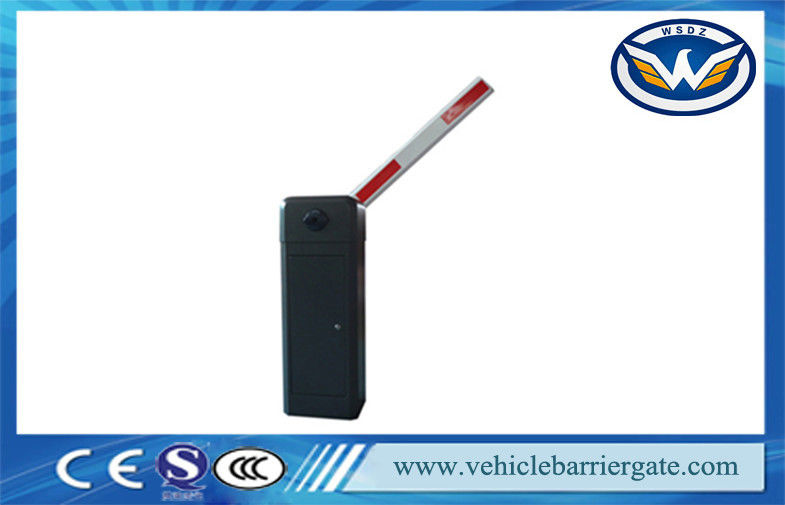

Waterproof Rfid Automatic Car Park Barriers With Manual Release Boom Barrier
Place of Origin | China |
---|---|
Marka adı | WONSUN |
Sertifika | CE, ISO, SGS |
Model Number | WSTP-115 |
Min sipariş miktarı | 1ADET |
Fiyat | negotiation |
Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
Teslim süresi | ödemenizi aldıktan sonra 3-7 iş günü |
Ödeme koşulları | T / T, Western Union, Para Gram, Alibaba Ticaret Güvencesi, Paypal vb, |
Yetenek temini | 1000 setleri/ay |
Contact me for free samples and coupons.
Naber:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Heavy duty, manual release, swing out, remote control | Direction | Left or right |
---|---|---|---|
Speed | 0.6s, 1s, 1.8s, 3s, 6s | Name | Waterproof RFID Automatic Car Park Barriers with Manual Release Boom Barrier |
Arm Type | Straight, Fold, Fence Arm | Material | 2.00mm Cold Roll Plate Or Galvanized Plate |
Vurgulamak | parking lot barriers,araba park bariyerleri |
Waterproof Rfid Automatic Car Park Barriers With Manual Release Boom Barrier
What is the davantages of Wonsun barriers?
1)The humanized clutch device:in case of power off, unlock the clutch device and raise the boom manufally. By the time the power is supplied, lick the clutch device to make it working normally again.
2)Special spring device:Both the compression spring and tension spring can be used in the machine, Using the compression sprin can avoid accidents caused by the tension spring.
3)Three control buttons:for boom raising, falling and pausing.
4)Boom backtrack function:the boom will rise if hits something when falling.
5)Infrared photocell design:for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed.
6)Both external and internal loop detectors are supported.
7)"open","close" and "stop" controlling interfaces.
8)RS-485 communication serial interface(optional)
9)Traffic light signal connection device: red light for stop,green light for pass.
10)Remote control and wire control for selection.
Specifications:
Model |
WSTP-115 (WONSUN 1st generation machine core) |
Power |
80w |
Material |
Cold roll plate, Galvanized plate or stainless steel varnish baking, 3 years without fading |
Running Time |
0.6s, 1s, 1.8s, 3s, 6s |
Operating Temperature |
-45°C to 75°C |
Voltage: |
220V ± 10%, 110V ± 10% |
Relative Humidity |
<90% coagulation free |
Motor speed |
30r/min |
Boom length |
Max 6 meters |
Net weight: |
50Kg |
MCBF |
≥5, 000, 000 times |
Housing Size |
320*280*935mm |
Traffic light |
Optional |
Rail material |
Aluminum Alloy |
Boom Type |
Straight arm: Mar 1- 6 meters optional, size 45×100mm aluminum alloy. Folding arm: 90°folding arm / 180°folding arm, aluminum alloy Fence arm: Two or three fence arm, Mar1- 6 meters, aluminum alloy |
Related accessories |
infrared sensors, loop detectors,traffic light, UHF readers |
Application |
Parking Lots, Toll Gates, Goods Yards, Railway Crossings, |
Advantages |
1. quick delivery time, 3-5 days for 50 sets after received advance deposite 2. 7 years OEM/ODM experience 3. quick response for handling problems |
Our other products |
WONSUN has other products: tripod turnstiles, sliding gate motor, flap barrier,swing gate motor, pedestrian access control turnstiles and barriers, |
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Parking & Shipping:
Packing list | |||
Name | Specifications | Quantity | Remarks |
Machine core | Good in working | 1 | Main part |
Barrier arm | Straight, folding or fence arm | 1 | Optional |
Boom press board | 1 | Fixing the boom | |
Self-tapoing screw | ST4*16 | Fixing the boom | |
Self-tapoing screw | st3*10 | 4 | Fixing the boom |
Supporting pole | 1 | Fupporting the boom | |
Expanion bolt | M16*150 | 4 | Fixing the case |
Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
Clutch key | 1 | clutch device | |
Case Key | 2 | for case and cover locking | |
Balance spring | According to length of barrier arm | 1 | for sapre usage |
Remote emitter | less than 30m is available | 1 | For remote control |
Remote conrol handles | less than 30m is available | 2 | For remote control |
Instruction | in English | 1 | For reference |
RS485 interface | 1 | Optional | |
Disc | 1 | Optional | |
Communication Mould | 1 | Optional | |
Cover head | 1 | 3 years without fading | |
Expanion nut | M8 | 4 | Fixing the supporting pole |
Communication with customers
1) Q: Connected power and press open/close button but traffic barrier gate no action?
A |
Reason |
Solution |
1 |
Fuse blown |
Check fuse and power in controller |
2 |
Battery of remote control powered off |
Change a new one |
3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?
A |
Reason |
Solution |
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
2 |
Main controller failure |
Change a new one |
3) Q: Motor running but traffic barrier gate arm no action?
A |
Reason |
Solution |
1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?
A. |
Reason |
Solution |
1 |
Length adjustment of connecting rod not correct |
Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal position |
Why choose us?
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
