Automatic Car Park Barrier System Security Boom Gates With RS485 Interface

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

Ben sohbet şimdi

Automatic Car Park Barrier System Security Boom Gates With RS485 Interface

Çin Automatic Car Park Barrier System Security Boom Gates With RS485 Interface Tedarikçi

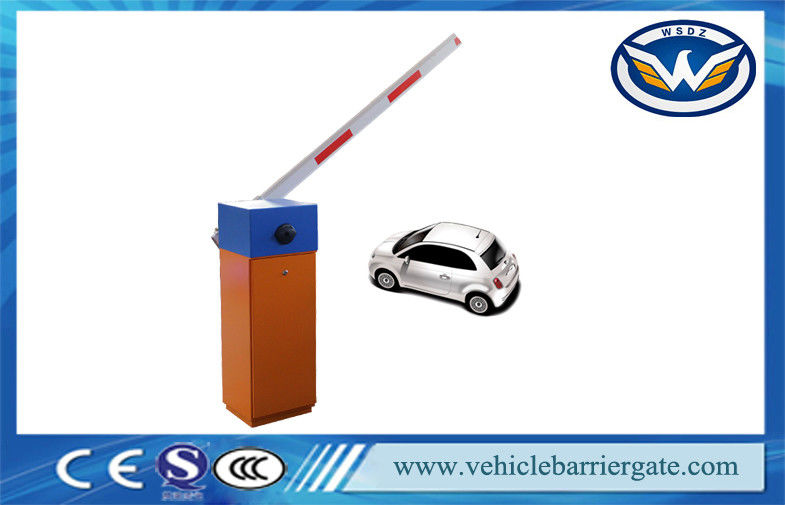

Büyük resim :  Automatic Car Park Barrier System Security Boom Gates With RS485 Interface

Ürün ayrıntıları:

Place of Origin: China
Marka adı: WONSUN
Sertifika: CE, ISO, SGS
Model Number: WSTP-125

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1ADET
Fiyat: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Teslim süresi: ödemenizi aldıktan sonra 3-7 iş günü
Ödeme koşulları: T / T, Western Union, Para Gram, Alibaba Ticaret Güvencesi, Paypal vb,
Yetenek temini: 1000 setleri/ay
Contact Now
Detaylı ürün tanımı
Product name:: China Parking Equipment Car Park Barrier System With RS485 Interface Color: yellow, Orange, Black, Blue, customize optional
Operation Time:: 0.6s, 1s, 1.8s, 3s, 6s, Optional Rating Voltage: AC 220/110V±10%, 50/60Hz
Material:: 2mm Cold Roll Plate Or Galvanized Plate Motor power:: 120W

China Parking Equipment Car Park Barrier System With RS485 Interface





WONSUN SUMMER PROMOTION: BUY 20 SETS, GET 1 FOR FREE

                               IF INTEREST, PLEASE CONTACT ME FREELY!

                               SKYPE: zimin1314

                               Whatsapp: +86 18507481610




Quick details:


Model WSTP-115
Size 320*280*935 mm
Voltage AC 220V/110V±10%, 50/60HZ
Rated Power 120W
Operation time 0.6s, 1s, 1.8s, 3s,4s,6s. Customized
Working Temperature -40℃~+75℃
Material

Galvanized plate or Cold roll plate, 2.0mm thickness sheet

3 years without rust, shedding and fading

Spring And Bearing Heat Treatment: more durable, more than 5 million times through operation testing
Remote Control Distance
Usually more than 30 meters, if there is less obstacles, even 50 meters or more
Packing Size 1020*375*467mm , with seven layers carton case

inside with air bubble film for protection

Delivery By Sea: big order(more than 100 sets), Cheap, suggested

By Air: small order(1-15 sets), quick and cheap, suggested





Car Park barrier functions & features:



1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)




Parking list:


Items quantity items quantity
Paint-coated case 1 motor 1
Transmission 1 limit switch 1
Barrier arm 1 capacitor 1
Spring 1 circuit board 1
Remote control device 2 console control device 1
Installation kit 1





FAQ:



1. When barrier finish closing, why does the arm open itself slowly?

  • the spring is too tight, you need release the spring a little, then test it again.
  • see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
  • reset the balance position and the electrical limit switch.



2. Why does the controller panel operate with "Di Di Di" abnormal noises?

  • As for this, it means the resistance on controller board is broken, if you have professional tools to check,
  • then replace that broken resistance, if not, replace that controller panel.



3. Why does the barrier finish half operation of opening and closing?

  • If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.



4. When barrier closed, why is there a 5 degree angle of inclination?

  • the model is not good, and the gear doesn't fit each other tightly.
  • the barrier didn't adjust well, need to reset.



5. When barrier finish open, but it closes itself without any order control, what's the problem?

  • To check the loop cable first, because the loop cable maybe brokem
  • To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.



6. Why does the arm wave a lot when opening and closing?

  • The spring is very tight
  • The Screw touches the rubber absorption tightly, need to reset again.



7. Rubber linning installation suggestion:

  • It is good use for fast speed, like 0.6s, 1s, 1.8s and 3s.
  • The place with many vehicles come and go, like shopping center, carpark area.



8. Can you accept OEM/ODM order?

  • Absolutely, we are manufacturer of barrier gate, with 7 years researching and developing experience.



Delivery information:



Automatic Car Park Barrier System Security Boom Gates With RS485 Interface

Automatic Car Park Barrier System Security Boom Gates With RS485 Interface
