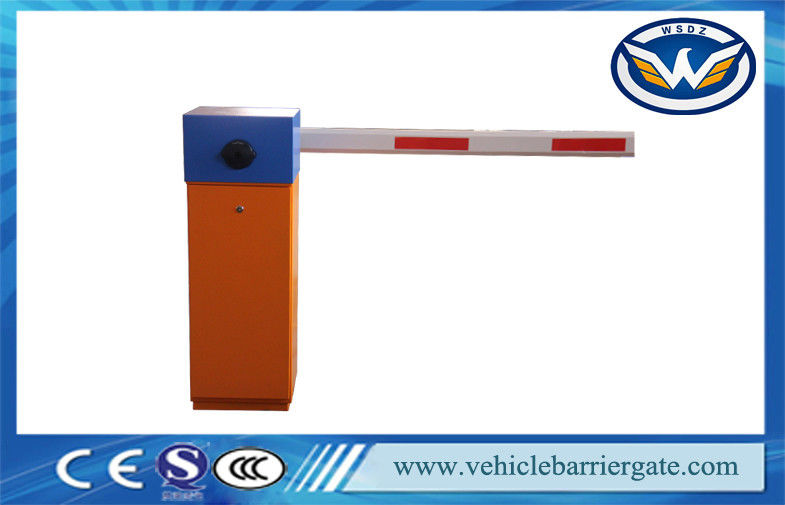

Colored Parking Barrier Gate , Aluminum Boom Car Park Barrier Systems

Çin Colored Parking Barrier Gate , Aluminum Boom Car Park Barrier Systems Tedarikçi

Büyük resim :  Colored Parking Barrier Gate , Aluminum Boom Car Park Barrier Systems

Ürün ayrıntıları:

Place of Origin: China
Marka adı: WONSUN
Sertifika: CE, ISO, SGS
Model Number: WSTP-125

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1ADET
Fiyat: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Teslim süresi: ödemenizi aldıktan sonra 3-7 iş günü
Ödeme koşulları: T / T, Western Union, Para Gram, Alibaba Ticaret Güvencesi, Paypal vb,
Yetenek temini: 1000 setleri/ay
Contact Now
Detaylı ürün tanımı
Product name:: Aluminum Boom Barrier Parking Barrier Gate For Parking Lot System Operation Time:: 0.6s, 1s, 1.8s, 3s, 6s, Optional
Rating Voltage: AC 220/110V±10%, 50/60Hz Color: yellow, Orange, Black, Blue, customize optional
Arm material:: Aluminum alloy Housing Material:: 2mm Cold Roll Plate Or Galvanized Plate

Aluminum Boom Barrier Parking Barrier Gate For Parking Lot System





WONSUN SUMMER PROMOTION: BUY 20 SETS, GET 1 FOR FREE

                               IF INTEREST, PLEASE CONTACT ME FREELY!

                               SKYPE: zimin1314

                               Whatsapp: +86 18507481610





Technical data:



1) Beam length: <=6m

2) Opening (Closing) time: 1s, 1.8s,3s, 6s

3) Center height: 0.83m

4) Machine core working temperature: -40 degrees to +75 degrees

5) Electric working temperature: -20 degrees to +75 degrees

6) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz

7) Rated power: 120W

8) Relative humidity: <=90%

9) Remote control distance: >=30m

10) Net weight: 55KGS





Features:

Integrative machine core: all part is made by mold, so all parts can be more accurate. And so the
barrier gate can be much more stable;
.Left or right installed can be amendable. Customer can amend install direction by himself;
.Accurate link mechanism: link mechanism can release arm’s shake and motor load, so the
barrier gate can move more stable and barrier gate’s working life can be more longer;
.70W turbine worm transmission deceleration induction motor: Drive Steady, Noise Lower,
Structures Compact, can realize self-locking.


Functions:


1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)





Parking list:


1. Strong carton case with cushion for safety, air bubble film inside for protect ing the

apperance from damaging.

2. As for wooden crate packing, it is USD$ 10/ps; for wooden case packing, it is USD$ 32/ps.

3. As for shipping, we can send you the goods by air, sea and express, which according to your

detail requirements.

Items quantity items quantity
Paint-coated case 1 motor 1
Transmission 1 limit switch 1
Barrier arm 1 capacitor 1
Spring 1 circuit board 1
Remote control device 2 console control device 1
Installation kit 1





FAQ:



1. When barrier finish closing, why does the arm open itself slowly?

  • the spring is too tight, you need release the spring a little, then test it again.
  • see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
  • reset the balance position and the electrical limit switch.



2. Why does the controller panel operate with "Di Di Di" abnormal noises?

  • As for this, it means the resistance on controller board is broken, if you have professional tools to check,
  • then replace that broken resistance, if not, replace that controller panel.



3. Why does the barrier finish half operation of opening and closing?

  • If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.



4. When barrier closed, why is there a 5 degree angle of inclination?

  • the model is not good, and the gear doesn't fit each other tightly.
  • the barrier didn't adjust well, need to reset.



5. When barrier finish open, but it closes itself without any order control, what's the problem?

  • To check the loop cable first, because the loop cable maybe brokem
  • To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.
