220v、110v Heavy Duty Sliding Gate Opener , Wire Control Electric Gate Motor

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

Ben sohbet şimdi

220v、110v Heavy Duty Sliding Gate Opener , Wire Control Electric Gate Motor

Çin 220v、110v  Heavy Duty Sliding Gate Opener , Wire Control Electric Gate Motor Tedarikçi
220v、110v  Heavy Duty Sliding Gate Opener , Wire Control Electric Gate Motor Tedarikçi 220v、110v  Heavy Duty Sliding Gate Opener , Wire Control Electric Gate Motor Tedarikçi 220v、110v  Heavy Duty Sliding Gate Opener , Wire Control Electric Gate Motor Tedarikçi 220v、110v  Heavy Duty Sliding Gate Opener , Wire Control Electric Gate Motor Tedarikçi 220v、110v  Heavy Duty Sliding Gate Opener , Wire Control Electric Gate Motor Tedarikçi 220v、110v  Heavy Duty Sliding Gate Opener , Wire Control Electric Gate Motor Tedarikçi

Büyük resim :  220v、110v Heavy Duty Sliding Gate Opener , Wire Control Electric Gate Motor

Ürün ayrıntıları:

Place of Origin: China
Marka adı: WONSUN
Sertifika: CE/ISO/SGS
Model Number: WSSG-102

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1ADET
Fiyat: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Teslim süresi: ödemenizi aldıktan sonra 3-7 iş günü
Ödeme koşulları: T / T, Western Union, Para Gram, Alibaba Ticaret Güvencesi, Paypal vb,
Yetenek temini: 1000 setleri/ay
Contact Now
Detaylı ürün tanımı
Name: Wire Control Electric Gate Motor Or Slide Gate Motor Material: 1.5 MM cold rolled steel sheet
Color: silver Voltage: AC220/110V,50/60HZ
Power: 120W Weight: 60KG
Working Temperature: -20℃-50℃ Key Word: sliding gate motor
OEM/ODM: Support one more remote: optional
Trade way: FOB


Wire Control Electric Gate Motor Or Slide Gate Motor


Key words: sliding gate opener ,sliding gate operator , sliding gate motor, sliding door opener , sliding door operator , sliding door motor, automatic sliding gate opener ,solar sliding gate opener , Dc motor , gate opener , automatic door operators

Before you order ,something you need to know

WHY CHOOSE US ?


Shenzhen Wonsun Machinery&Electrical Technology Co.,Ltd.,which manufactured the latest automatic technology and intelligent desigh ahead in this field .Especially slide gate motor. With high quality and competitive price ,makes it our top-sell .And we believe our barrier gate series can meet your high quality demand.


  • Specifications
Working VoltageAC220/110V
Frequency50/60HZ
Working humidity≤85%
Power350W
open stylesliding
base materialalluminum
Remote control distance≥30m
Maxload weight1500KG
Net weight8.5KG
Manual ReleaseYes

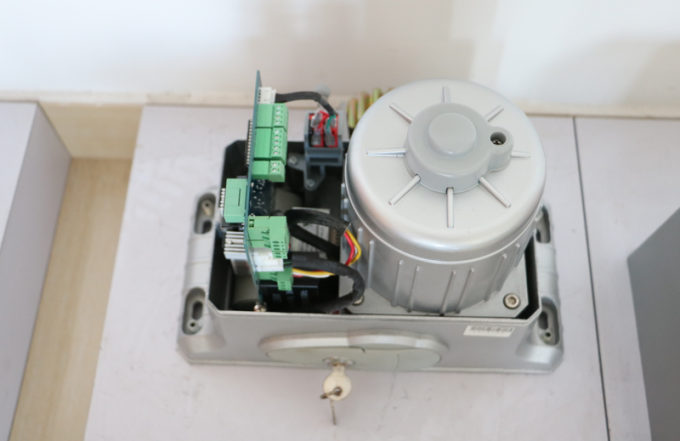

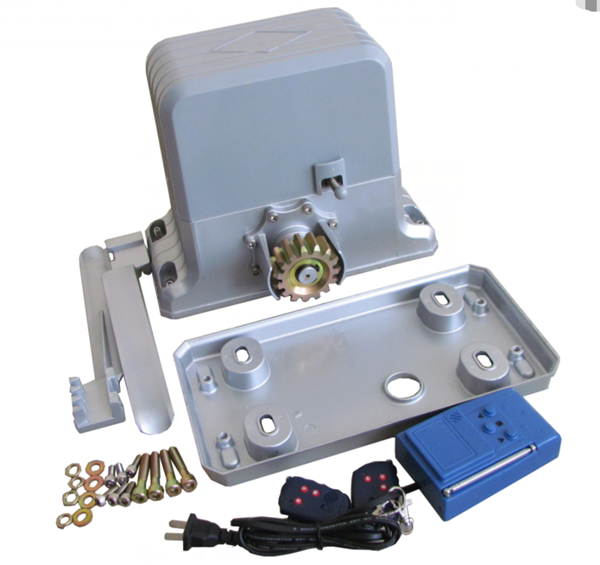

  • Pictures For Reference

220v、110v  Heavy Duty Sliding Gate Opener , Wire Control Electric Gate Motor

220v、110v  Heavy Duty Sliding Gate Opener , Wire Control Electric Gate Motor


Functions& Features
1. Max gate weight 800kg
2.New design of spring limit switch downward
3.Each set include one Motor, one control board, 2pcs transmitters two manual release key and one spring limit switch
4.Mcu is supplied to control the gate operator
5.Keypad/single button interface
6.Photo beam safety beam interface
7.User can select Auto-close function
8.Manual key release design for emergency purposes


Sliding gate operators description:

Single phase
Speed up to 600mm per second
Manual override release clutch
Basic features means easy to set up
Soft starting and stopping function
All electric enclosed in a protective enclosure
100% duty cycle

Others information of sliding gate opener:

FAQ about motor:
1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop detector is right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check whether it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same with the code of the control panel.


Packing list
NameQuantityUnitRemark
Sliding gate operator1setNecessary
Remote control2pcsNecessary
Internal hexangular bolt4pcsM8*40
Internal hexangular bolt4pcsM6*16
Left limit iron1pcsNecessary
Right limit iron1pcsNecessary
Base board1pcsNecessary
Release key2pcsNecessary
Manual1pcsNecessary
Infrared photocell1setOptional
Radio emitter1setOptional



the STAFFs you care about most

1. Any email will be checked in 5 minutes, any inquiry will be replied within 1 hour, and any solution will      be supplied in 1 day.
2. Professional R&D team and manufacturer, supply OEM & ODM.
3. Best quality, Fashion design, reasonable & competitive price, fast lead time.
4. After-Sale Service
5.Guarantee time: 1 year
6.Delivery deadline: 3-7 workdays after payment received
7.Package: 1 set in a standard carton packing


please leave message to us about the power voltage you need .
