Remote Control Electric Sliding Gate Opener with heavy duty Swing Operator Gates Kit

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

Ben sohbet şimdi

Remote Control Electric Sliding Gate Opener with heavy duty Swing Operator Gates Kit

Çin Remote Control Electric Sliding Gate Opener with heavy duty Swing Operator Gates Kit Tedarikçi
Remote Control Electric Sliding Gate Opener with heavy duty Swing Operator Gates Kit Tedarikçi Remote Control Electric Sliding Gate Opener with heavy duty Swing Operator Gates Kit Tedarikçi Remote Control Electric Sliding Gate Opener with heavy duty Swing Operator Gates Kit Tedarikçi Remote Control Electric Sliding Gate Opener with heavy duty Swing Operator Gates Kit Tedarikçi Remote Control Electric Sliding Gate Opener with heavy duty Swing Operator Gates Kit Tedarikçi

Büyük resim :  Remote Control Electric Sliding Gate Opener with heavy duty Swing Operator Gates Kit

Ürün ayrıntıları:

Place of Origin: China
Marka adı: WONSUN
Sertifika: CE/ISO/SGS
Model Number: WS-102

Ödeme & teslimat koşulları:

Min sipariş miktarı: 1ADET
Fiyat: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Teslim süresi: ödemenizi aldıktan sonra 3-7 iş günü
Ödeme koşulları: T / T, Western Union, Para Gram, Alibaba Ticaret Güvencesi, Paypal vb,
Yetenek temini: 1000 setleri/ay
Contact Now
Detaylı ürün tanımı
Name: Electric Sliding Gate Opener Automatic Remote Control model NO: ws -102
Color: silver Voltage: AC220/110V,50/60HZ
Power: 350W Weight: 10KG
Working Temperature: -20℃-55℃ Key Word: sliding gate motor
OEM/ODM: Support one more remote: optional
Trade way: FOB


Electric Sliding Gate Opener with heavy duty Swing Operator Gates Kit Automatic Remote Control


Key words: sliding gate opener ,sliding gate operator , sliding gate motor, sliding door opener , sliding door operator , sliding door motor, automatic sliding gate opener ,solar sliding gate opener , Dc motor , gate opener , automatic door operators

Before you order ,something you need to know

WHY CHOOSE US ?


Shenzhen Wonsun Machinery&Electrical Technology Co.,Ltd.,which manufactured the latest automatic technology and intelligent desigh ahead in this field .Especially slide gate motor. With high quality and competitive price ,makes it our top-sell .And we believe our barrier gate series can meet your high quality demand.





HIGHLIGHTS



1) Integrated mechanical and eletrical,all functions on one controller

2) Radio controller or linesto control open,close and stop functions
3) Magenetic limit switch,the door stops when it moves to the limit
4)Accurate limit braking
5)Electronic soft-start
6)Dialing switches to adjust the motor rotation in both directions
7)Open and close limits have a self-locking function
8)Intelligent operation-if an obstacle is detected when the door is closing,it will reverse to open,then after 10 seconds it attempts to close automatically unless you press the stop key-stroke.
9)Movement indication-the indicator lights up when the door is moving.
10)Optional line control or remote control





Product Description





Product name Wonsun Sliding gate motor WS 102
Voltage 220V± 10%
Frequency 50HZ
Current 2.7A
Motor Voltage AC220V/110V
Capacitor 20μ F
Power 350W
Torque 350nm
Motor Number M=4
Motor Speed 1350rpm
Gear Speed 58.8rpm
Travel Speed 11m/min
Remote Distance ≥30m
Max-load Weight 1800KG
Net Weight 10KG
Manual Release Yes
Working Temperature -40°C~55°C
Overload Protection Temperature 130℃
Motor Making Technical die casting aluminum alloy





  • Pictures For Reference

Remote Control Electric Sliding Gate Opener with heavy duty Swing Operator Gates Kit

Remote Control Electric Sliding Gate Opener with heavy duty Swing Operator Gates Kit


Functions& FeatureS


Sliding gate operators description:

Single phase
Speed up to 600mm per second
Manual override release clutch
Basic features means easy to set up
Soft starting and stopping function
All electric enclosed in a protective enclosure
100% duty cycle

Others information of sliding gate opener:

FAQ about motor:
1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop detector is right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check whether it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same with the code of the control panel.

heavy duty Automatic Door gear motor 120m remote control with factory priceheavy duty Automatic Door gear motor 120m remote control with factory price

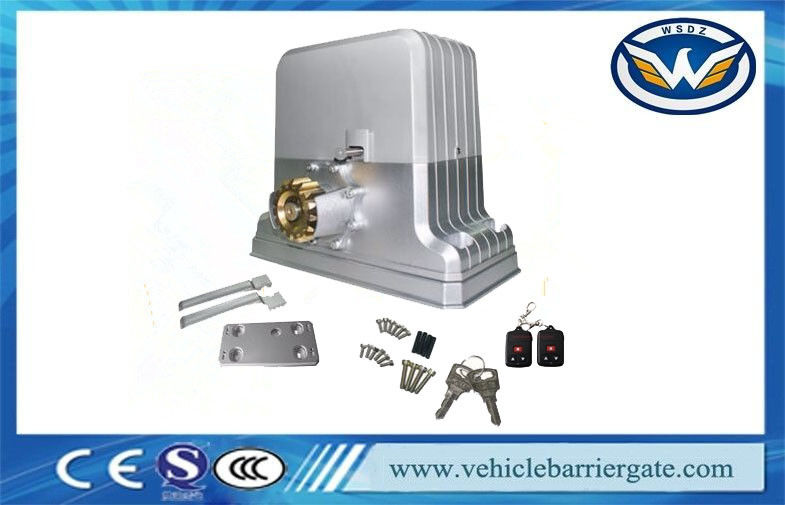

Packing list
Name Quantity Unit Remark
Sliding gate operator 1 set Necessary
Remote control 2 pcs Necessary
Internal hexangular bolt 4 pcs M8*40
Internal hexangular bolt 4 pcs M6*16
Left limit iron 1 pcs Necessary
Right limit iron 1 pcs Necessary
Base board 1 pcs Necessary
Release key 2 pcs Necessary
Manual 1 pcs Necessary
Infrared photocell 1 set Optional
Radio emitter 1 set Optional



the STAFFs you care about most

1. Any email will be checked in 5 minutes, any inquiry will be replied within 1 hour, and any solution will      be supplied in 1 day.
2. Professional R&D team and manufacturer, supply OEM & ODM.
3. Best quality, Fashion design, reasonable & competitive price, fast lead time.
4. After-Sale Service
5.Guarantee time: 1 year
6.Delivery deadline: 3-7 workdays after payment received
7.Package: 1 set in a standard carton packing


please leave message to us about the power voltage you need .
easier way : SKYPE: pi.trista contact anything you want t know.
