InductiveTraffic Vehicle Loop Detector for Car Parking System
Place of Origin | China |
---|---|
Marka adı | WONSUN |
Sertifika | CE, ISO, SGS |
Model Number | WSTV-410 |
Min sipariş miktarı | 1ADET |
Fiyat | negotiation |
Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing. |
Teslim süresi | ödemenizi aldıktan sonra 3-7 iş günü |
Ödeme koşulları | T / T, Western Union, Para Gram, Alibaba Ticaret Güvencesi, Paypal vb, |
Yetenek temini | 1000 setleri/ay |
Contact me for free samples and coupons.
Naber:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSize of Housing | 78x36x85 mm | Supply voltage | 24V 12V |
---|---|---|---|
Signal holding time | Unlimited | Sensitivity | Adjustable in 3 increments |
Operating temperature | 220℃ to +65℃ | Reaction time | 100ms |
Vurgulamak | loop vehicle detector,vehicle detection loop |

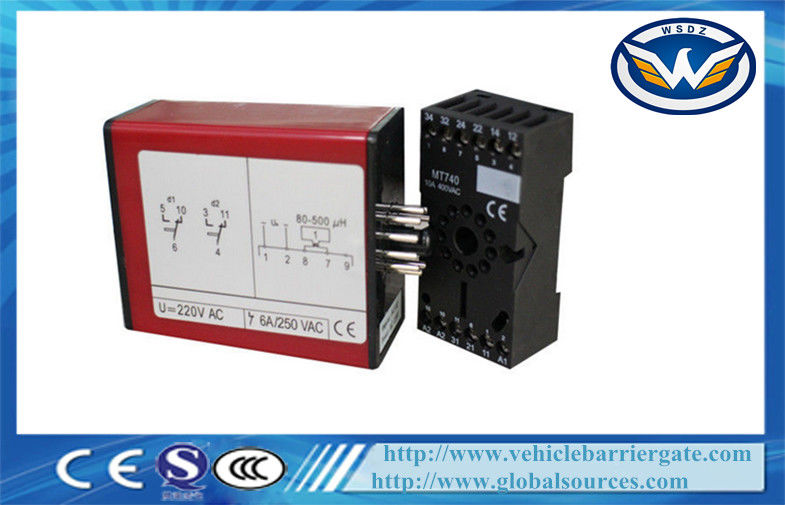

InductiveTraffic Vehicle Loop Detector for Car Parking System
Quick Detail:
vehicle loop detector
Single channel inductive loop detectorsl
Application
Loop detectors are used wherever vehicles have to be detected. Like monitoring and safe guarding access ways to counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems in car parks or activating card dispensers in car parks.
The WSTV-410 is a single channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.
Features:
1. High temperature stability, used in kinds of environment
2. Environment drifting compensate automatically
3. Multilevel lightning protection
4. With function of sensing loop malfunction automatically (disconnection or cutting-out)
5. Cooperate with barrier gate to realize vehicle anti-hit and automatic close function
6. Detect the vehicles driving direction with two loops
Specification:
Supply voltage: | 220V AC , 115V AC,24VDC/AC,12V DC/AC ( See the label on the detector) |
|||||||||||||||||||
Voltage tolerance AC | +10% / -15% | |||||||||||||||||||
Voltage tolerance DC | ±15% | |||||||||||||||||||
Power Consumption | 4.5VA | |||||||||||||||||||
Output relays | 240V/5A | |||||||||||||||||||
Operating temperature | -220°C to +65°C | |||||||||||||||||||
Storage temperature | -40°C to +85°C | |||||||||||||||||||
Frequency range | 20 kHz to 170 kHz | |||||||||||||||||||
Reaction time | 100ms | |||||||||||||||||||
Signal holding time | Unlimited | |||||||||||||||||||
Sensitivity | Adjustable in 3 increments | |||||||||||||||||||
Loop inductance | Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH |
|||||||||||||||||||
Loop connection wiring | Maximum length 20 meters, twisted at least 20 times per meter |
|||||||||||||||||||
Size of Housing | 78x40x108 mm (L x W x H) |
